Dual spindle turning and milling complex center
subcategory：
Jierui series
keyword：
Dual spindle turning and milling complex center
Detailed introduction

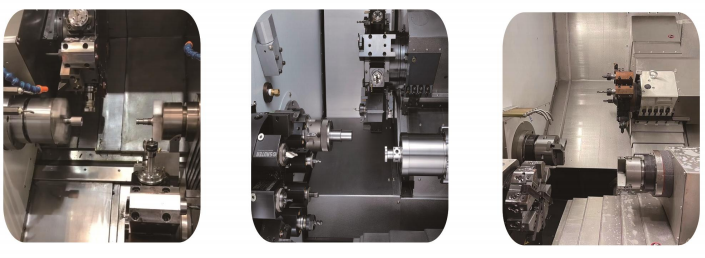

Dual spindle turning center
◆ The machine tool adopts the row knife type, which has stable tool change accuracy and high efficiency, and can expand the power head to realize turning and milling composite processing.
◆ Double spindle adopts servo synchronous electric spindle, high speed, accurate precision and low noise.
◆ Taiwan precision linear guide rail and roller screw are adopted, and the roller screw is pre-stretched to improve rigidity and reduce the influence of cold and hot machine tools on machining accuracy.
◆ It adopts high-pressure and large-flow water cooling system, the tool holder sprays water strongly, and has the function of chip breaking to prevent spindle splenders.

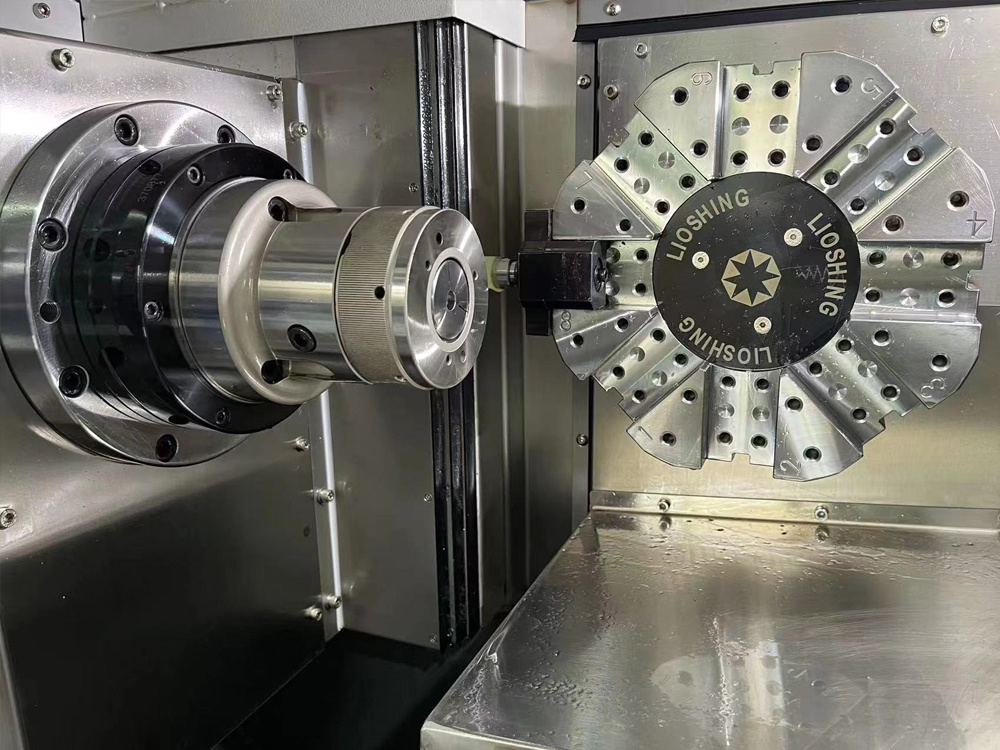

Dual spindle turret/mill-turn center
◆ Unique Mihanna cast iron bed technology, strong vibration absorption, improve rigidity and machine tool stability.
◆ Y-axis travel +80mm, two-way Y-axis, flexible machining of complex parts, to ensure precision and rigidity.
◆ Each co-service shaft is equipped with high-precision roller screw to improve the feed speed and enhance the rigidity and stability of the machine.
◆ Each service shaft is equipped with high-precision roller screw to improve the feed speed and enhance the rigidity and stability of the machine.
◆ Optional grating ruler, higher repeatability positioning, temperature sensing compensation makes the processing accuracy more stable.
◆ BMT driven turret flexible matching, high torque, high speed, high precision, standard turret center water, can quickly remove chips and extend tool life!
| Machine model | 36BS | 46BS | 52D | 52HE | 65GY | |
| Processing range | Maximum swing diameter mm | φ500 | φ500 | φ550 | φ550 | φ320 |
| Maximum machining diameter mm | φ360 | φ285 | φ330 | φ350 | φ210 | |
| Maximum machining length mm | 280 | 180 | 300 | 300 | 200 | |
| itinerary | X1/X2 mm | 980 | 850/800 | 300/320 | 300/320 | 210/150 |
| Z1/Z2 mm | 400 | 195/300 | 320/250 | 320/250 | 670/670 | |
| Y1/Y2 mm | - | - | - | 45/35 | ±80 | |
| Primary/secondary axes | Spindle/countershaft power kW | 5.5/7.5 | 7.5/7.5 | 11/11 | 15/11 | 18.5/11 |
| Spindle end form | A2-4 | A2-5/A2-4 | A2-6/A2-5 | A2-6/A2-5 | A2-6/A2-5 | |
| Spindle speed rpm | 10-4500 | 10-4500 | 35-4500 | 35-4500 | 35-4500 | |
| chuck | 5 inches / 5 inches | 6 inches / 5 inches | 8 inches / 5 inches | 8 inches / 5 inches | 8 inches / 6 inches | |
| Spindle through-hole diameter | 35 | 46 | 52 | 66 | 66 | |
| Secondary spindle hole diameter | 35 | 35 | 36 | 36 | 42 | |
| Main and auxiliary turrets | Tool capacity | Two-way row knife | Two-way row knife | 12 servo turret/12 servo turret | 15 driven turret / 12 driven turret BMT55/BMT45 | 12 up and down driven turret BMT55/BMT55 |
| Turning tool body size | 20x20 | 25x25 | 20x20 | 25x25 | 25x25 | |
| Maximum boring tool diameter | φ25 | φ32 | φ25 | φ32 | φ32 | |
| Feed | Fast forward m/min in the X/Z axis | 20 | 24 | 24 | 24 | 24 |
| other | Net weight Kg | 4300 | 4900 | 5600 | 6200 | 7200 |
| Power requirements | 380V | 380V | 380V | 380V | 380V | |
| Rail form | Linear guides | Linear guides | Linear guides | Linear guides | Linear guides | |
| Total power KVA | 22 | 26 | 24 | 28 | 15 | |
| system | Taiwan New Generation | Taiwan New Generation | Taiwan New Generation | Taiwan New Generation | Taiwan New Generation |

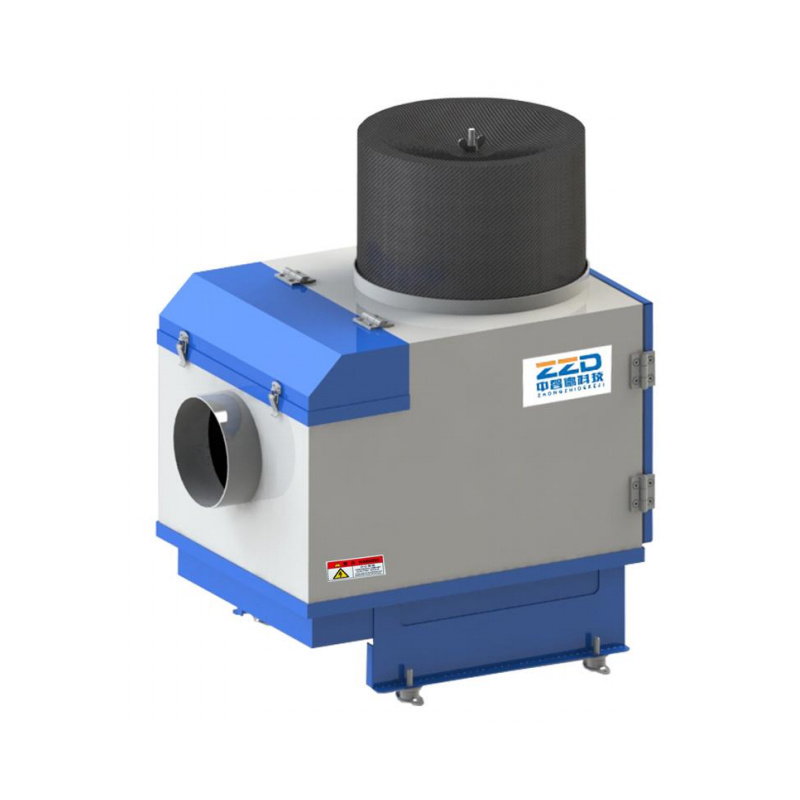

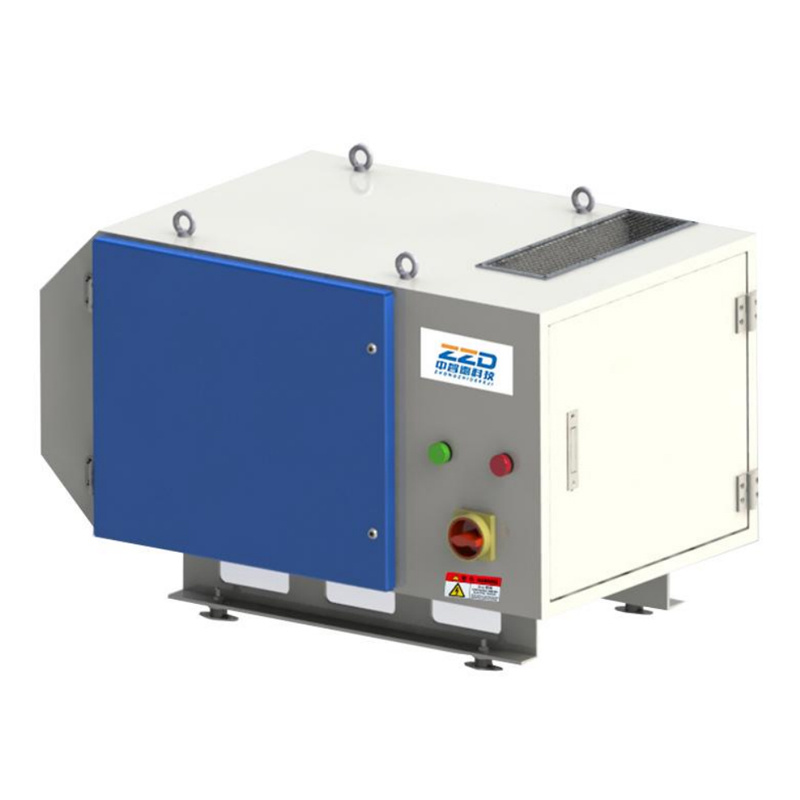

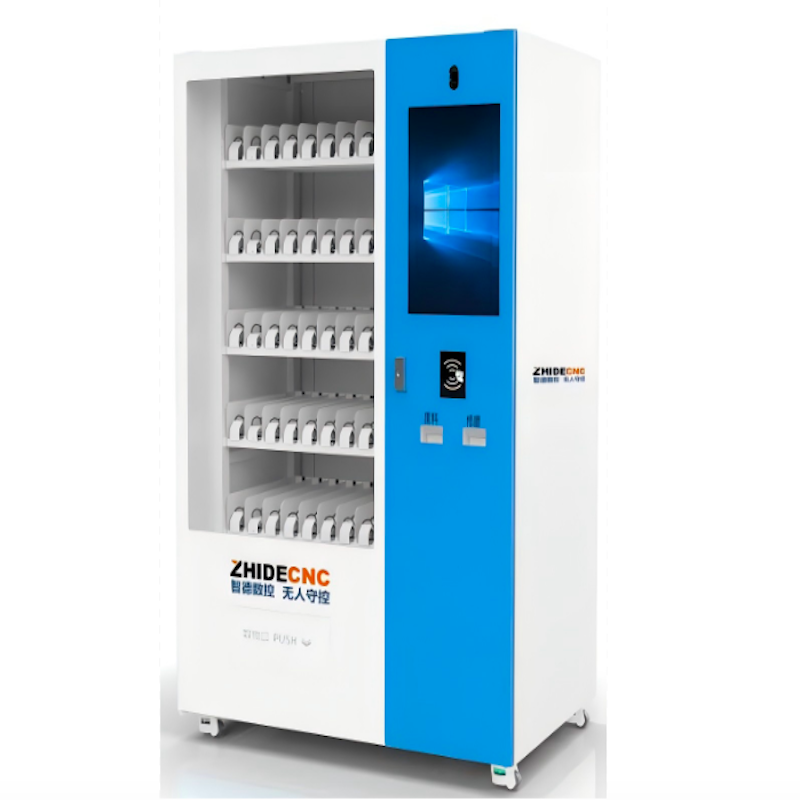

Machine tool peripheral products
Application
Its products are CNC precision lathes, machining centers, multi-axis compound turning and milling machine series, widely used in pneumatic hydraulic, auto parts, home appliances and sanitary ware, medical equipment and military aviation and other industries.

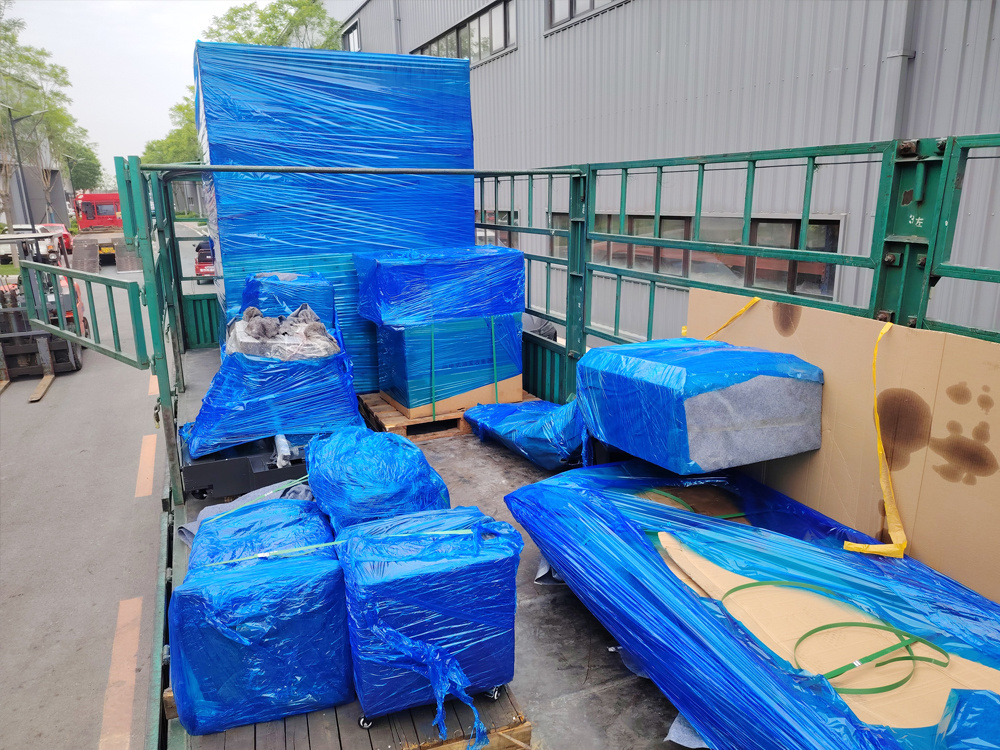

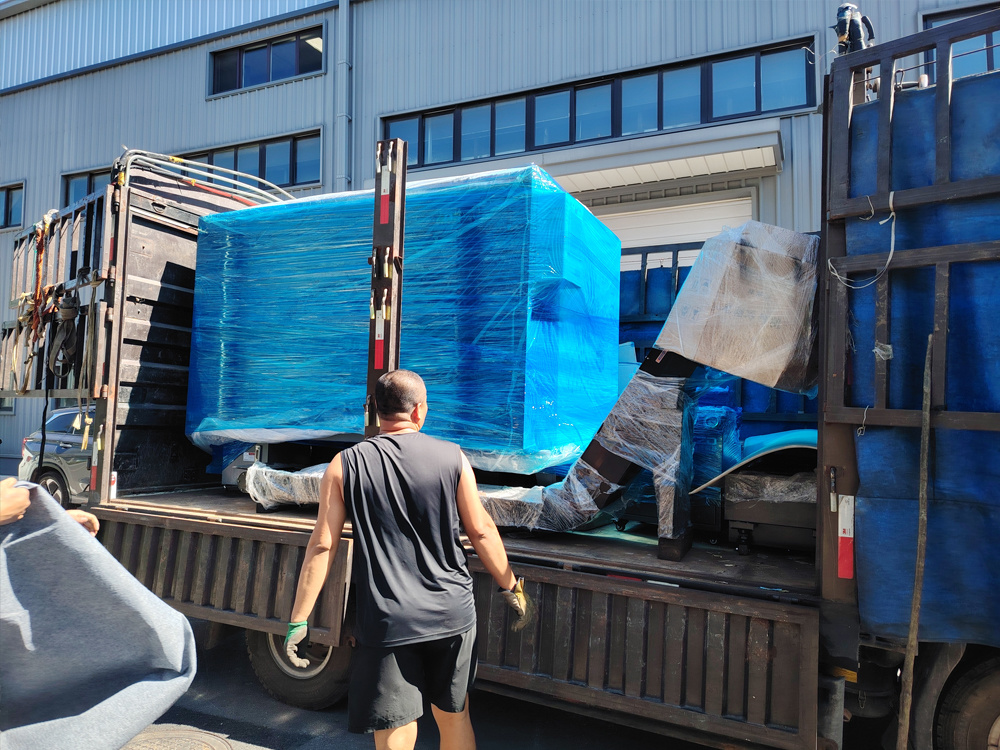

Packing and transportation
In order to serve new and old users in a full range, reduce costs for users, improve efficiency, and enable users to obtain a return on investment, the company's business involves from machine tool manufacturing, equipment maintenance and technology development, precision manufacturing, machine tool accessories and automated manufacturing services, to solve users in product research and development, manufacturing, precision environmental protection, high precision and high efficiency and other related technical problems;
 |
 |
 |
 |
 |
 |
 |
 |
Customer service
In order to serve new and old users in a full range, reduce costs for users, improve efficiency, and maximize the return on investment, the company's business involves machine tool research and development and manufacturing and machine tool application services, to solve users in product research and development, manufacturing, precision environmental protection, high precision and efficient and other related technical problems, diversified, deep and efficient customer management mechanism.
Cooperative enterprise
Automobile industry
Military industry
Other industries

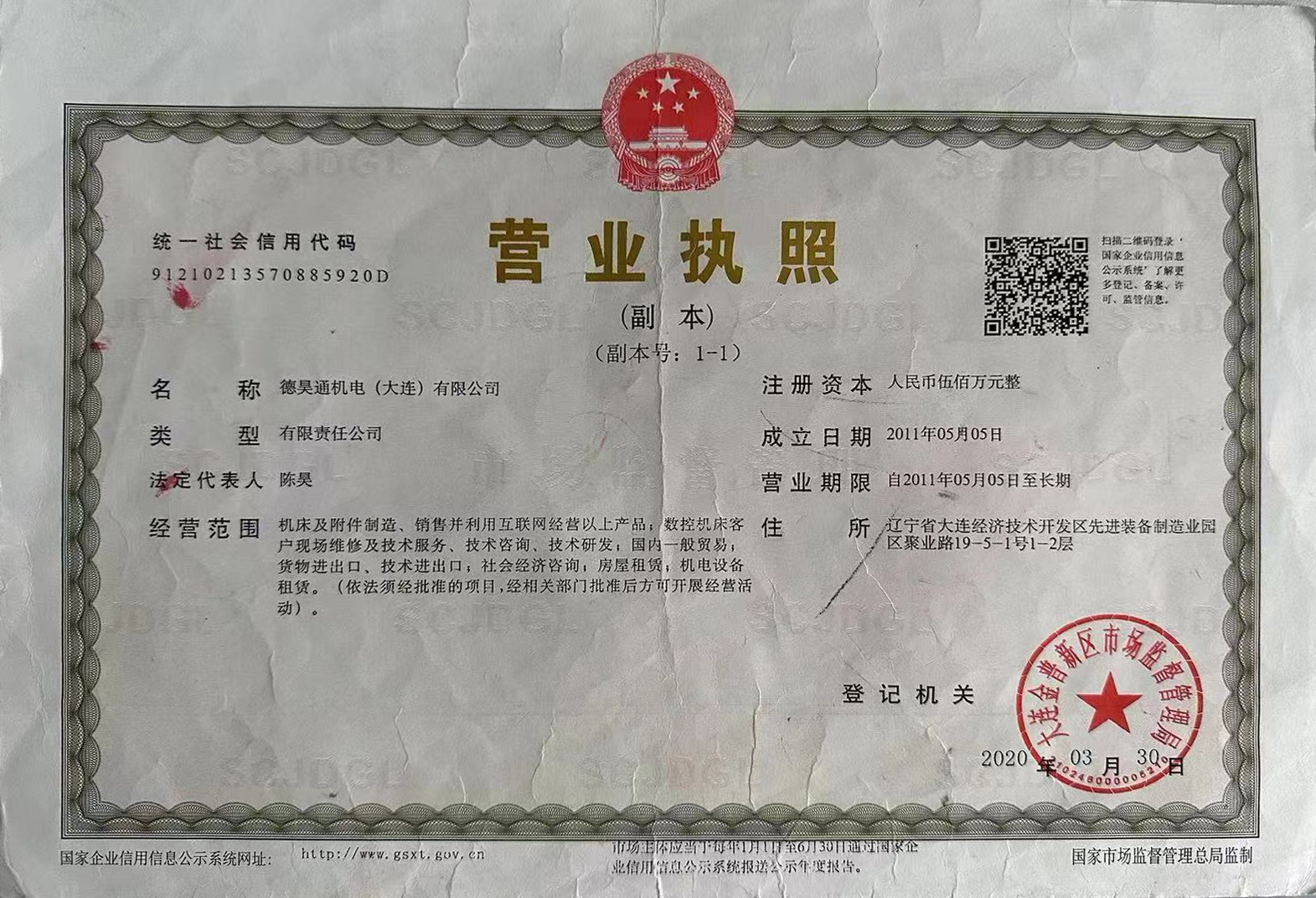

Certification
