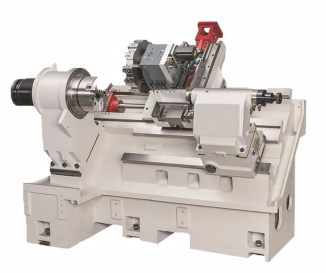

CNC turning center
subcategory：
Zorui series
keyword：
CNC turning center
Detailed introduction
◆ One-piece cast bed, stronger rigidity, more stable precision.
◆ Compact structure, spacious processing area, optional automatic loading and unloading.
◆ Using He service/driven turret, the tool change speed is faster and the accuracy is more stable.
◆ The X, Z axis adopts high-precision roller rail and lead screw, and the bidirectional pre-stretching assembly process ensures that the repeatable positioning accuracy of each axis of the machine tool is within +0.002mm.
◆ High-precision and high-torque mechanical spindle is selected to ensure that the spindle end jump/diameter jump accuracy is within 0.002mm.
| Machine model | 6T | 8T | 10T | 6TM | 8TM | 10TM | |
| Processing range | Maximum swing diameter mm | Ψ400 | φ550 | φ550 | Ψ400 | φ550 | φ550 |
| Maximum machining diameter mm | Ψ360 | φ280 | φ350 | Ψ360 | φ280 | φ350 | |
| Maximum machining length mm | 330 | 550 | 500 | 330 | 550 | 500 | |
| itinerary | X-axis mm | 190 | 185 | 250 | 190 | 185 | 250 |
| Z-axis mm | 350 | 520 | 620 | 350 | 520 | 620 | |
| Tailstock shaft travel mm | 140 | 500 | 500 | 140 | 500 | 500 | |
| spindle | The motor transmits power kw | 7.5/11 | 11/15 | 15/18.5 | 7.5/11 | 7.5/11 | 15/18.5 |
| Spindle end form | A2-5 | A2-6 | A2-8 | A2-5 | A2-6 | A2-8 | |
| Spindle speed rpm | 10-6000 | 35-4500 | 35-4500 | 10-6000 | 35-4500 | 35-4500 | |
| chuck | 6 inches | 8 inches | 8/10 inch | 6 inches | 8 inches | 8/10 inch | |
| Spindle through-hole diameter | 45 | 61 | 65 | 45 | 61 | 65 | |
| Dotret | Tool capacity | 8 Servo turret | 12 Servo turret | 12 Servo turret | 8 Servo turret | 12 Powered Turret | 12 Powered Turret |
| Turning tool body size | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 | |
| Maximum boring tool diameter | φ32 | φ40 | φ40 | φ32 | φ40 | φ40 | |
| Tailstock | Transmission form | Hydraulic tailstock | Hydraulic tailstock | Servo tailstock | Hydraulic tailstock | Hydraulic tailstock | Servo tailstock |
| Cone form | MT-5 | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | |
| Feed | X/Z fast-forward speed m/min | 24 | 24 | 24 | 24 | 24 | 24 |
| other | Net weight Kg | 3200 | 4200 | 4600 | 3200 | 4200 | 4600 |
| Power requirements | 380V | 380V | 380V | 380V | 380V | 380V | |
| Rail form | Linear guides | Linear guides | Linear guides | Linear guides | Linear guides | Linear guides | |
| Total power KVA | 15 | 20 | 26 | 15 | 20 | 26 | |
| system | Taiwan New Generation | FANUC | FANUC | Taiwan New Generation | FANUC | FANUC |
Machine tool peripheral products
Application
Its products are CNC precision lathes, machining centers, multi-axis compound turning and milling machine series, widely used in pneumatic hydraulic, auto parts, home appliances and sanitary ware, medical equipment and military aviation and other industries.
Packing and transportation
In order to serve new and old users in a full range, reduce costs for users, improve efficiency, and enable users to obtain a return on investment, the company's business involves from machine tool manufacturing, equipment maintenance and technology development, precision manufacturing, machine tool accessories and automated manufacturing services, to solve users in product research and development, manufacturing, precision environmental protection, high precision and high efficiency and other related technical problems;
 |
 |
 |
 |
 |
 |
 |
 |
Customer service
In order to serve new and old users in a full range, reduce costs for users, improve efficiency, and maximize the return on investment, the company's business involves machine tool research and development and manufacturing and machine tool application services, to solve users in product research and development, manufacturing, precision environmental protection, high precision and efficient and other related technical problems, diversified, deep and efficient customer management mechanism.
Cooperative enterprise
Automobile industry
Military industry
Other industries
Certification
Over the years, DeHaotong company has been deeply engaged in research, taking the road of independent research and development and close cooperation with foreign technology, successfully applied for a number of patent technology certification, and won the high-tech enterprise qualification certificate, the company focuses on the development and manufacturing of high precision CNC machine tools, and has passed the ISO9000 international quality system certification;
